Galvanized Precast Concrete Lifting Loop Wire Rope Slings 0.8-20MT

Name: Galvanized Precast Concrete Lifting Loop Wire Rope Slings 0820MT
Brand: gaosheng
Price: 1 USD

Quality Galvanized Precast Concrete Lifting Loop Wire Rope Slings 0.8-20MT for sale

Place of Origin : China

Model Number : 7*19 or 6*19+fc

Brand Name : gaosheng

Packaging Details : Different packaging methods are adopted according to different modes of transport.

MOQ : 3000 pieces

Payment Terms : L/C, D/A, D/P, T/T

Type : galvanized

Application : precasting

Alloy Or Not : Non-Alloy

Wire Gauge : 200 - 610mm

Product name : Precast concrete lifting loop wire rope slings

Length : 200 - 610mm

Capacity : 0.8 - 20MT

Surface : galvanized, plain and electric galvanized

Packing : Plywood box

Material : High Tensile Steel 72A 82A

Surface treatment : Electro-galv

Tensile strength : 1570-2160MPA

Certificate : ISO9001

Diameter : 1/16"-1/2"

Contact Now

Precast Concrete Lifting Loop Wire Rope Slings

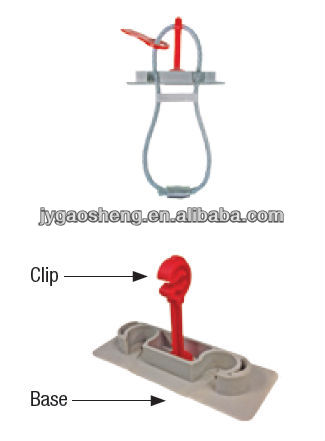

The Wire Rope Lifting System is an economical lifting loop for utility type structures. It is used in either face or edge lifts applications and is ‘mucked’ into the surface of the concrete. The galvanized wire rope is formed in a figure-8 shape, with the ends of the rope secured by a positive swaged clamp, and a steel band at approximately the midpoint to establish the proper shape. The Wire Rope Lifting System is embedded 2/3 of its length into the concrete. The hardware must be standard hook or clevis with a diameter at least twice the rope diameter. Each anchor has a color-coded tag which identifies the SWL (safe working load) in tension of the anchor.

Features

· 7 standard sizes – handles most precast applications up to 10,000 lb SWL.

· Mucked into surface – no recess members required by the precaster.

· Galvanized wire rope – reduces rusting of the anchor.

· Can be cut off or left exposed – reduces labor cost for precaster.

· Economical – for the ‘cost conscious precast.

Galvanized Precast Concrete Lifting Loop Wire Rope Slings 0.8-20MT

Wire Rope Cast In Loops
PART CODE	S.W.L. (TON)	ROPE DIA (mm)	LOOP HEIGHT (mm)
GS00800	0.8	6	200
GS01200	1.2	7	220
GS01600	1.6	8	235
GS02000	2.0	9	255
GS02500	2.5	10	280
GS04000	4.0	12	330
GS05200	5.2	14	385
GS06300	6.3	16	385
GS08000	8.0	18	430
GS10000	10.0	20	470
GS12500	12.5	22	510
GS16000	16.0	26	560
GS20000	20.0	28	610
GS25000	25.0	32	670

Galvanized Precast Concrete Lifting Loop Wire Rope Slings 0.8-20MT

Buying Guides

ORDER STEEL WIRE ROPE INFORMATION NEED TO KNOW THE FOLLOWING :

1.Application:	For which application the steel wire rope will be used.
2.Size:	Diameter of the steel wire rope in milimeter or inches.
3.Construction:	Number of strands, number of wires per strand and type of strand construction.
4.Type of Core:	Steel Wire Rope have Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay:	Right regular lay,left regular lay,right lang lay,left lang lay.
6.Fabrication:	Preformed or not.
7.Material:	Bright(ungalvanized),galvanized or stainess steel
8.Grade of wire:	Tensile strength of wires
9.Breaking Load:	Minum or calculated breaking load in tones or pounds.
10.Length:	Length of wire rope.
11.Packing:	In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity:	By number of coils or reels,by length or weight
13.Specification:	Any recognized specification, if necessary.
14.Certification:	Mill sheet and/or a third party's inspection,if necessary.
15.Remarks:	Shipping marks and any other special requirment
